Acer Power P500DK

System Speed Test screenshot

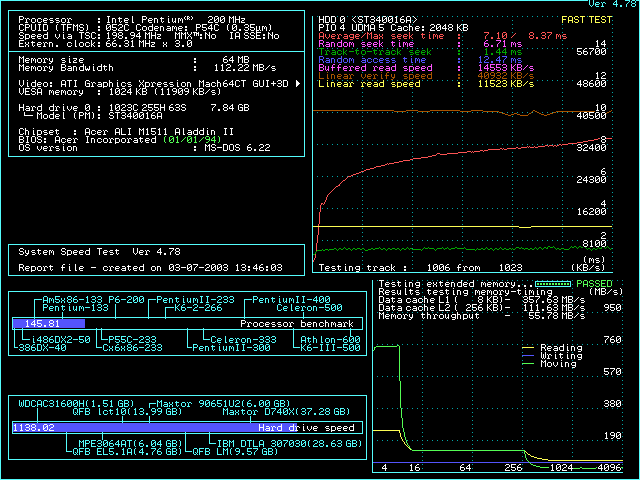

Screenshot #1: System Speed Test 4.78 on the Acer Power P500DK.
Screenshot #1: System Speed Test 4.78 on the Acer Power P500DK.

System Speed Test report file

 ---------------------------------------------------------------------------
System Speed Test  Ver 4.78      Report file - created on 03-07-2003 13:46:01
 ---------------------------------------------------------------------------

CPU is in V86 mode: No
Processor         : Intel Pentium(r)   200 MHz
Frequency via TSC : 198.94 MHz
External clock    : 66.31 MHz x 3.0
CPUID (TFMS)      : 052C  Codename: P54C (0.35um)
Feature           : 000001BFh  MMX(tm):No, IA SSE:No, IA SSE2:No
CPU speed index   : 145.81

Total memory size : 64 MB
Memory Bandwidth  : 112.22 MB/s

PCI Video         : ATI Graphics Xpression Mach64CT GUI+3D Accelerator

VESA OEM String   : ATI MACH64
VESA video memory : 1024 KB (11909 KB/s)

Hard drive 0      : 1023C 255H 63S   7.84 GB
           +----- Model (PM): ST340016A
                  Tested in FAST mode
                  Average/Max seek time  : 7.10 ms / 8.37 ms
                  Random seek time       : 6.71 ms
                  Track-to-track seek    : 1.44 ms
                  Random access time     : 12.47 ms
                  Linear verify speed    : 40932 KB/s
                  Min/Max verify speed   : 39947 KB/s / 41305 KB/s
                  Linear read speed      : 11523 KB/s
                  Min/Max read speed     : 11465 KB/s / 11574 KB/s
                  Buffered read speed    : 14553 KB/s
                  Hard Drive speed index : 1138.02

Mainboard chipset : Acer ALI M1511 Aladdin II
BIOS vendor       : Acer Incorporated (01/01/94)
OS version        : MS-DOS 6.22
 ---------------------------------------------------------------------------

                ATA/ATAPI Device Information

IDE0---Master-<ATA-5>- ST340016A
     ¦     Cylinders: 4865, Heads: 255, Sectors: 63 (37.27 GB)
     ¦     Serial Number                 : 3HS7P***
     ¦     Firmware Revision             : 3.75
     ¦     Maximum Transfer Mode         : PIO 4, DMA 2, UDMA 5 (ATA-100)
     ¦     Selected DMA Transfer Mode    : DMA 2
     ¦     Cache Buffer Size             : 2048 KB
     ¦
     +-Slave--<Empty>

IDE1---Master-<Empty>
     ¦
     +-Slave--<Empty>

IDE2---Master-<Empty>
     ¦
     +-Slave--<Empty>

IDE3---Master-<Empty>
     ¦
     +-Slave--<Empty>
 ---------------------------------------------------------------------------

                Cache/Memory Benchmark
                +-----------------------------------------------------------+
                ¦     Read     ¦     Write    ¦     Move     ¦    Average   ¦
+---------------+--------------+--------------+--------------+--------------¦
¦ Cache Level 1 ¦   253.80 MB/s¦    64.05 MB/s¦   755.04 MB/s¦   357.63 MB/s¦
¦ Cache Level 2 ¦   135.64 MB/s¦    63.61 MB/s¦   135.64 MB/s¦   111.63 MB/s¦
¦ Memory        ¦    75.02 MB/s¦    63.70 MB/s¦    28.61 MB/s¦    55.78 MB/s¦
+---------------------------------------------------------------------------+
 ---------------------------------------------------------------------------

                Memory Modules Information

           SMBus/i2c Host Controller     : Not Present
 ---------------------------------------------------------------------------

                PCI/AGP Device Information  [PCI 2.10]

[00-00-0]
    +----- VEN_10B9, DEV_1511, REV_04, SUBSYS_00000000
           Acer Labs ALI M1511 Aladdin CPU to PCI Bridge
           Class Code : 060000 - PCI to Host Bridge
[00-02-0]
    +----- VEN_10B9, DEV_1513, REV_A4, SUBSYS_00000000
           Acer Labs ALI M1513 Aladdin PCI to ISA Bridge
           Class Code : 060100 - PCI to ISA Bridge
[00-03-0]
    +----- VEN_1095, DEV_0646, REV_01, SUBSYS_00000000
           CMD Technology PCI-0646 EIDE Adapter (Single FIFO)
           Class Code : 010180 - IDE Controller
           I/O Base Range 4              : 7800 - 780F (16)
[00-04-0]
    +----- VEN_1002, DEV_4354, REV_09, SUBSYS_00000000
           ATI Graphics Xpression Mach64CT GUI+3D Accelerator
           Class Code : 030000 - VGA Compatible Adapter
           Memory Base Range 0           : 06000000 - 06FFFFFF (16MB)
           I/O Base Range 1              : 7400 - 74FF (256)
 ---------------------------------------------------------------------------

                ISA PnP Device Information

   Card  Vendor ID  Serial No  ANSI ID String

      1    DLK2201   ***1BABA  D-Link DE-220P PnP ISA Card
 ---------------------------------------------------------------------------

End of report.
