IBM ThinkPad 770

Contents

Description

(todo)

Power consumption

According to IBM's internal 1998 Environmental Affairs Excellence Awards the ThinkPad 770 has a power consumption of 12 watts only, despite its large display and its high computing power.

System Speed Test screenshots

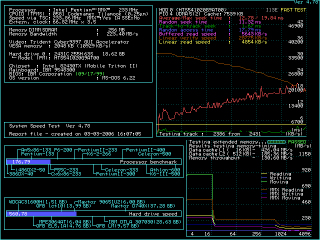

Screenshot #1: System Speed Test 4.78 on the IBM ThinkPad 770.
Screenshot #1: System Speed Test 4.78 on the IBM ThinkPad 770.

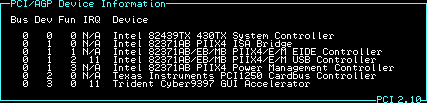

Screenshot #2: PCI/AGP Device Information
Screenshot #2: PCI/AGP Device Information

Screenshot #3: Memory Map
Screenshot #3: Memory Map

Screenshot #4: Cache/Memory Benchmark
Screenshot #4: Cache/Memory Benchmark

Screenshot #5: MMX Cache/Memory Benchmark
Screenshot #5: MMX Cache/Memory Benchmark

System Speed Test report file

 ---------------------------------------------------------------------------
System Speed Test  Ver 4.78      Report file - created on 03-03-2006 16:07:05
 ---------------------------------------------------------------------------

CPU is in V86 mode: No
Processor         : Intel Pentium(r) MMX(tm)  233 MHz
Frequency via TSC : 233.86 MHz
External clock    : 66.82 MHz x 3.5
CPUID (TFMS)      : 0581  Codename: Tilamook (0.25um)
Feature           : 008001BFh  MMX(tm):Yes, IA SSE:No, IA SSE2:No
CPU speed index   : 176.79

Total memory size : 256 MB
Memory Bandwidth  : 223.40 MB/s

PCI Video         : Trident Cyber9397 GUI Accelerator

VESA OEM String   : Copyright 1994 TRIDENT MICROSYST
VESA video memory : 2048 KB (10929 KB/s)

Hard drive 0      : 2431C 255H 63S  18.62 GB
           +----- Model (PM): HTS541020G9AT00
                  Tested in FAST mode
                  Average/Max seek time  : 12.78 ms / 19.84 ms
                  Random seek time       : 11.32 ms
                  Track-to-track seek    : 1.67 ms
                  Random access time     : 17.79 ms
                  Linear verify speed    : 28775 KB/s
                  Min/Max verify speed   : 18950 KB/s / 34637 KB/s
                  Linear read speed      : 4854 KB/s
                  Min/Max read speed     : 4707 KB/s / 5054 KB/s
                  Buffered read speed    : 5643 KB/s
                  Hard Drive speed index : 560.78

Mainboard chipset : Intel 82430TX (Mobile Triton II)
Mainboard model   : IBM 9548300
BIOS vendor       : IBM Corporation (09/17/99)
OS version        : MS-DOS 6.22
 ---------------------------------------------------------------------------

                ATA/ATAPI Device Information

IDE0---Master-<ATA-6>- HTS541020G9AT00
     ¦     Cylinders: 38760, Heads: 16, Sectors: 63 (18.63 GB)
     ¦     Serial Number                 :       MPB9LAX9C1X***
     ¦     Firmware Revision             : MB1OA60A
     ¦     Maximum Transfer Mode         : PIO 4, DMA 2, UDMA 5 (ATA-100)
     ¦     Selected DMA Transfer Mode    : UDMA 2
     ¦     Cache Buffer Size             : 7539 KB
     ¦
     +-Slave--<Empty>

IDE1---Master-<Empty>
     ¦
     +-Slave--<Empty>

IDE2---Master-<Empty>
     ¦
     +-Slave--<Empty>

IDE3---Master-<Empty>
     ¦
     +-Slave--<Empty>
 ---------------------------------------------------------------------------

                Cache/Memory Benchmark
                +-----------------------------------------------------------+
                ¦     Read     ¦     Write    ¦     Move     ¦    Average   ¦
+---------------+--------------+--------------+--------------+--------------¦
¦ Cache Level 1 ¦   298.85 MB/s¦    85.66 MB/s¦   893.62 MB/s¦   426.04 MB/s¦
¦ Cache Level 2 ¦   170.89 MB/s¦    85.38 MB/s¦   136.72 MB/s¦   130.99 MB/s¦
¦ Memory        ¦   113.66 MB/s¦    85.66 MB/s¦    84.78 MB/s¦    94.70 MB/s¦
+---------------------------------------------------------------------------+

                MMX(tm) Cache/Memory Benchmark
                +-----------------------------------------------------------+
                ¦   MMX Read   ¦   MMX Write  ¦   MMX Move   ¦    Average   ¦
+---------------+--------------+--------------+--------------+--------------¦
¦ Cache Level 1 ¦   532.38 MB/s¦   171.39 MB/s¦   274.09 MB/s¦   325.96 MB/s¦
¦ Cache Level 2 ¦   248.61 MB/s¦   170.74 MB/s¦   136.74 MB/s¦   185.36 MB/s¦
¦ Memory        ¦   135.81 MB/s¦   171.20 MB/s¦    84.78 MB/s¦   130.60 MB/s¦
+---------------------------------------------------------------------------+
 ---------------------------------------------------------------------------

                Memory Modules Information

           SMBus/i2c Host Controller     : Intel PIIX4, I/O: EFA0h
 ---------------------------------------------------------------------------

                PCI/AGP Device Information  [PCI 2.10]

[00-00-0]
    +----- VEN_8086, DEV_7100, REV_01, SUBSYS_00000000
           Intel 82439TX 430TX System Controller
           Class Code : 060000 - PCI to Host Bridge
[00-01-0]
    +----- VEN_8086, DEV_7110, REV_01, SUBSYS_00000000
           Intel 82371AB PIIX4 ISA Bridge
           Class Code : 068000 - Other Bridge
[00-01-1]
    +----- VEN_8086, DEV_7111, REV_01, SUBSYS_00000000
           Intel 82371AB/EB/MB PIIX4/E/M EIDE Controller
           Class Code : 010180 - IDE Controller
           I/O Base Range 4              : FCF0 - FCFF (16)
[00-01-2]
    +----- VEN_8086, DEV_7112, REV_01, SUBSYS_00000000
           Intel 82371AB/EB/MB PIIX4/E/M USB Controller
           Class Code : 0C0300 - USB (UHCI)
           I/O Base Range 4              : 8400 - 841F (32)
[00-01-3]
    +----- VEN_8086, DEV_7113, REV_01, SUBSYS_00000000
           Intel 82371AB PIIX4 Power Management Controller
           Class Code : 068000 - Other Bridge
[00-02-0]
    +----- VEN_104C, DEV_AC16, REV_01, SUBSYS_00921014
           Texas Instruments PCI1250 Cardbus Controller
           Class Code : 060700 - PCI to Cardbus Bridge
[00-03-0]
    +----- VEN_1023, DEV_9397, REV_F3, SUBSYS_00931014
           Trident Cyber9397 GUI Accelerator
           Class Code : 030000 - VGA Compatible Adapter
           Memory Base Range 0           : 20400000 - 207FFFFF (4MB)
           Memory Base Range 1           : 20800000 - 2081FFFF (128KB)
           Memory Base Range 2           : 20000000 - 203FFFFF (4MB)
 ---------------------------------------------------------------------------

End of report.

External links

Page last modified on 24-MAR-2008.
